iCULYTIC-E

FEATURES:
  • USER INTERFACE: EASY TO USE
  • FULL INTEGRATION: WITH LIS (LABORATORY INFORMATION SYSTEM) AND HIS (BUILDING MANAGEMENT SYSTEM) SYSTEMS
  • REAGENT PACK: UNIVERSAL FOR ALL PARAMETERS (Na, iCa, K, pH, Li, Cl)
  • AUTO-CALIBRATION: ON INSTALLATION OF NEW REAGENT PACK
  • RESULTS: STORES OVER 175,000 (COMPARABLE, REPEATABLE, ACCURATE)
  • DATA: STORED BY PATIENT, TEST DATE AND PARAMETERS
  • GLUCOSE: RESULTS CAN BE INPUT FROM EXTERNAL TESTS
  • LACTATE: RESULTS CAN BE INPUT FROM EXTERNAL TESTS
  • SAMPLE READING TIME: 65 SECONDS
  • MEASUREMENT: HTC (IMPEDANCE), ISE (ION SELECTIVE ELECTRODE), PO2 (AMPEROMETRY)
  • COST PER TEST: LOW

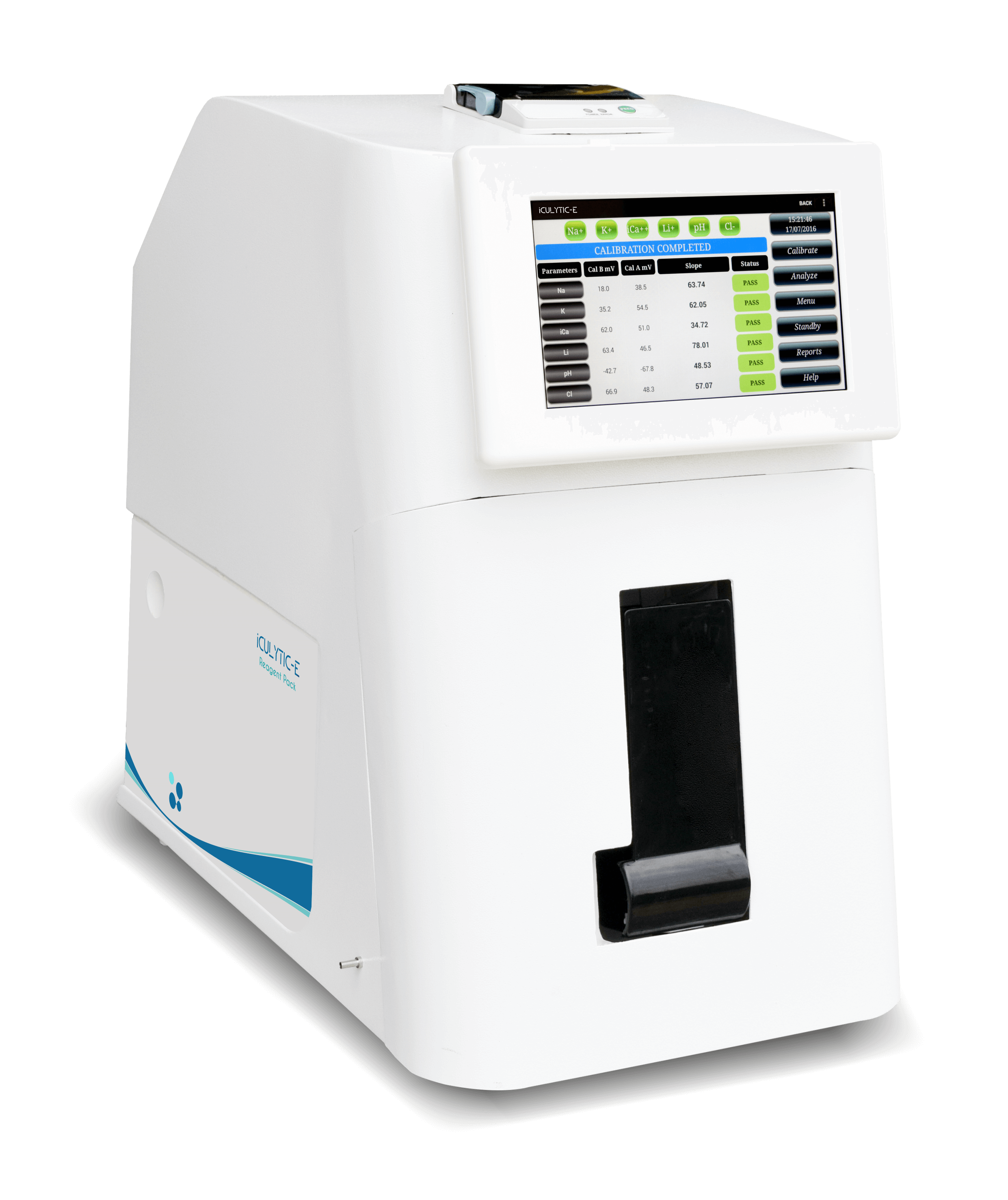

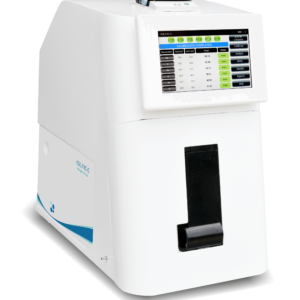

20180328 PIC 5 - ELECTROLYTE ANALYZERS - iCULYTIC-E - FRONT (ON)

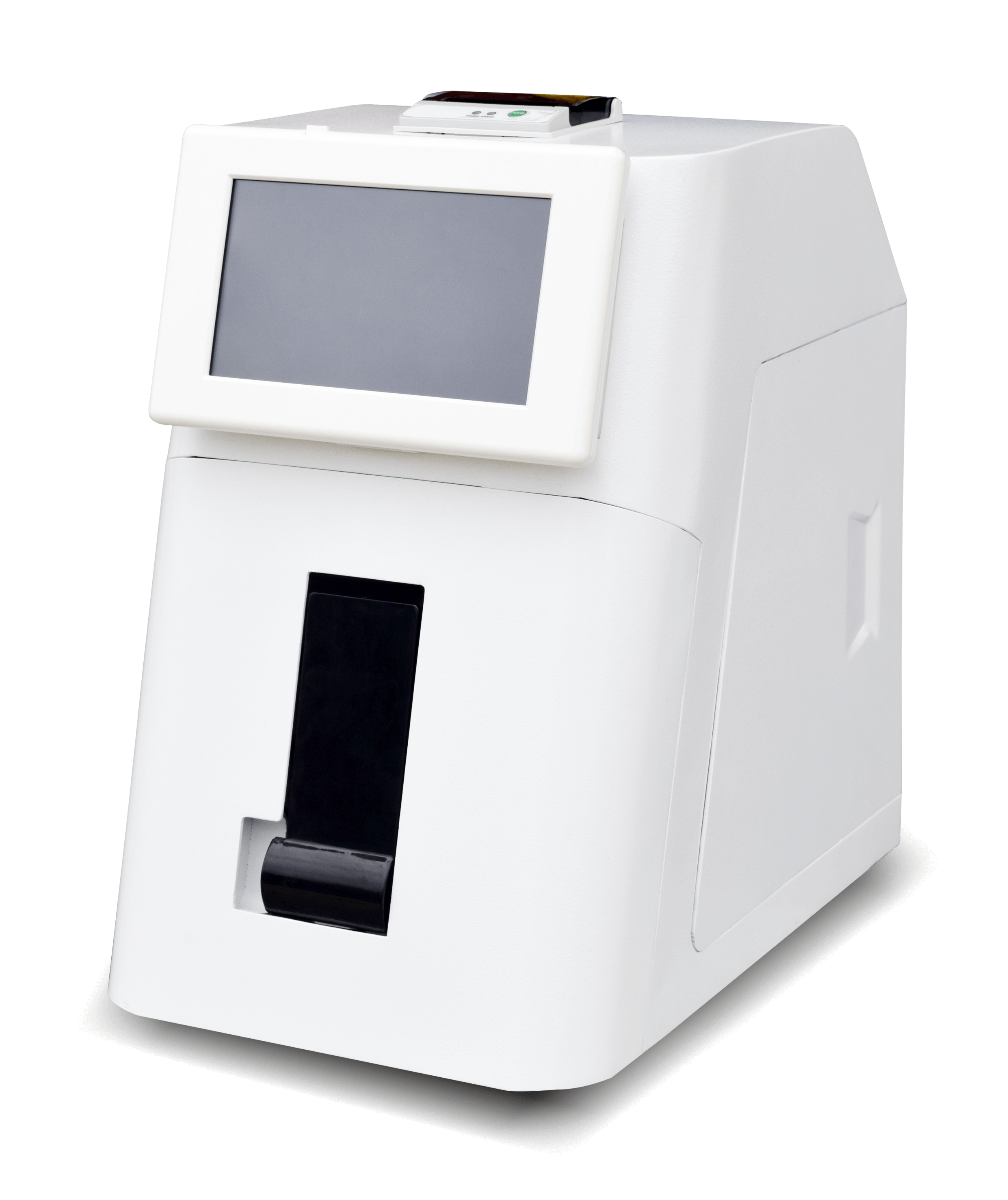

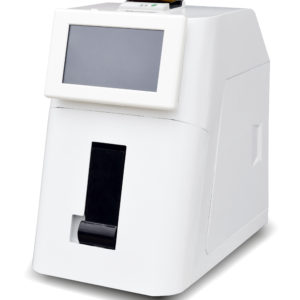

20180328 PIC 1 - ELECTROLYTE ANALYZERS - iCULYTIC-E - SIDE

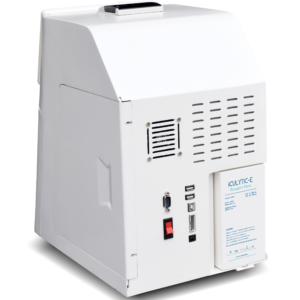

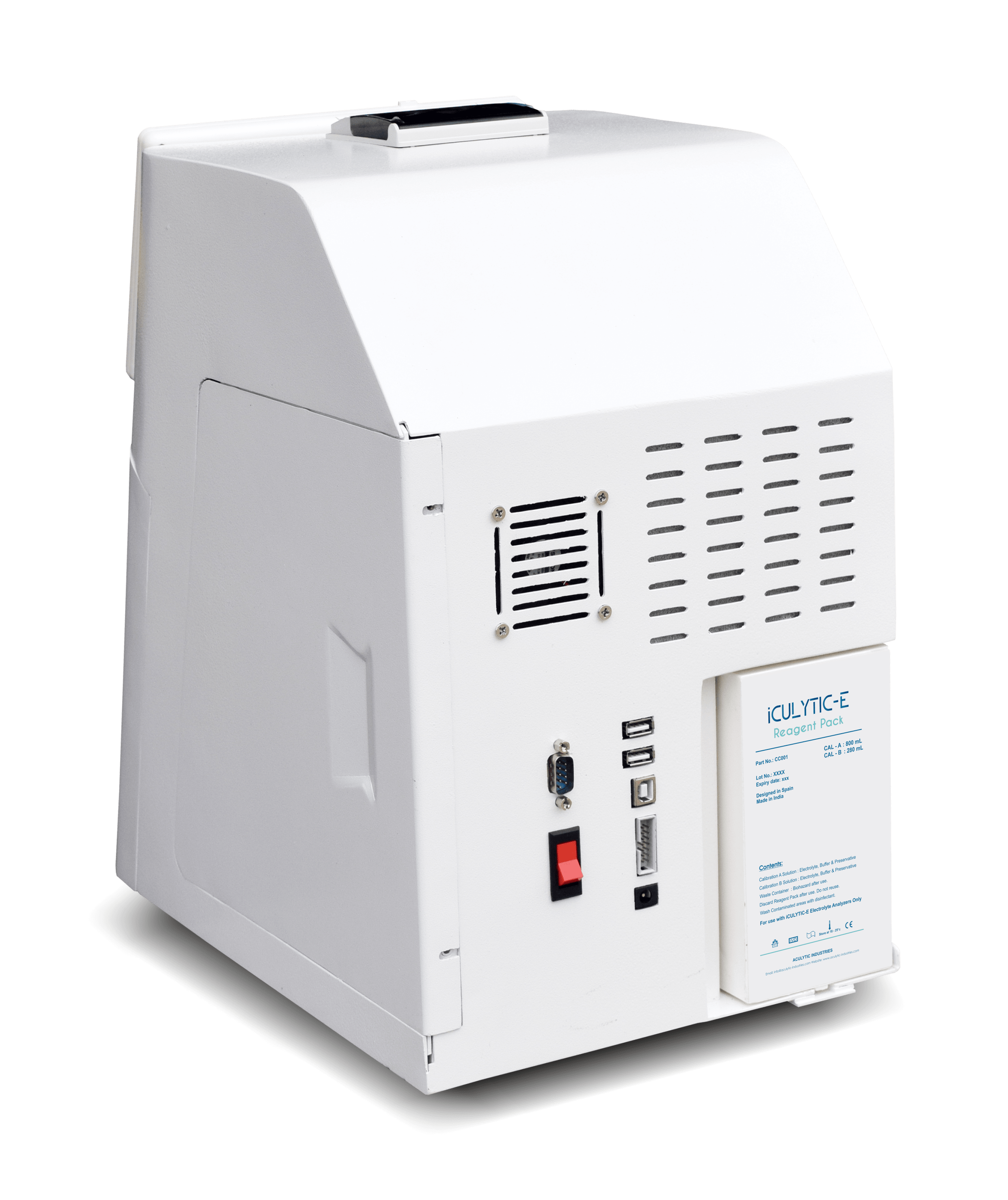

20180328 PIC 3 - ELECTROLYTE ANALYZERS - iCULYTIC-E - BACK-min

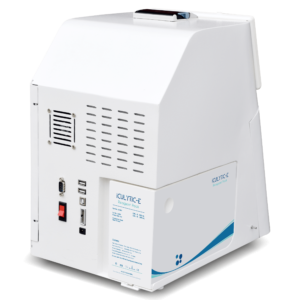

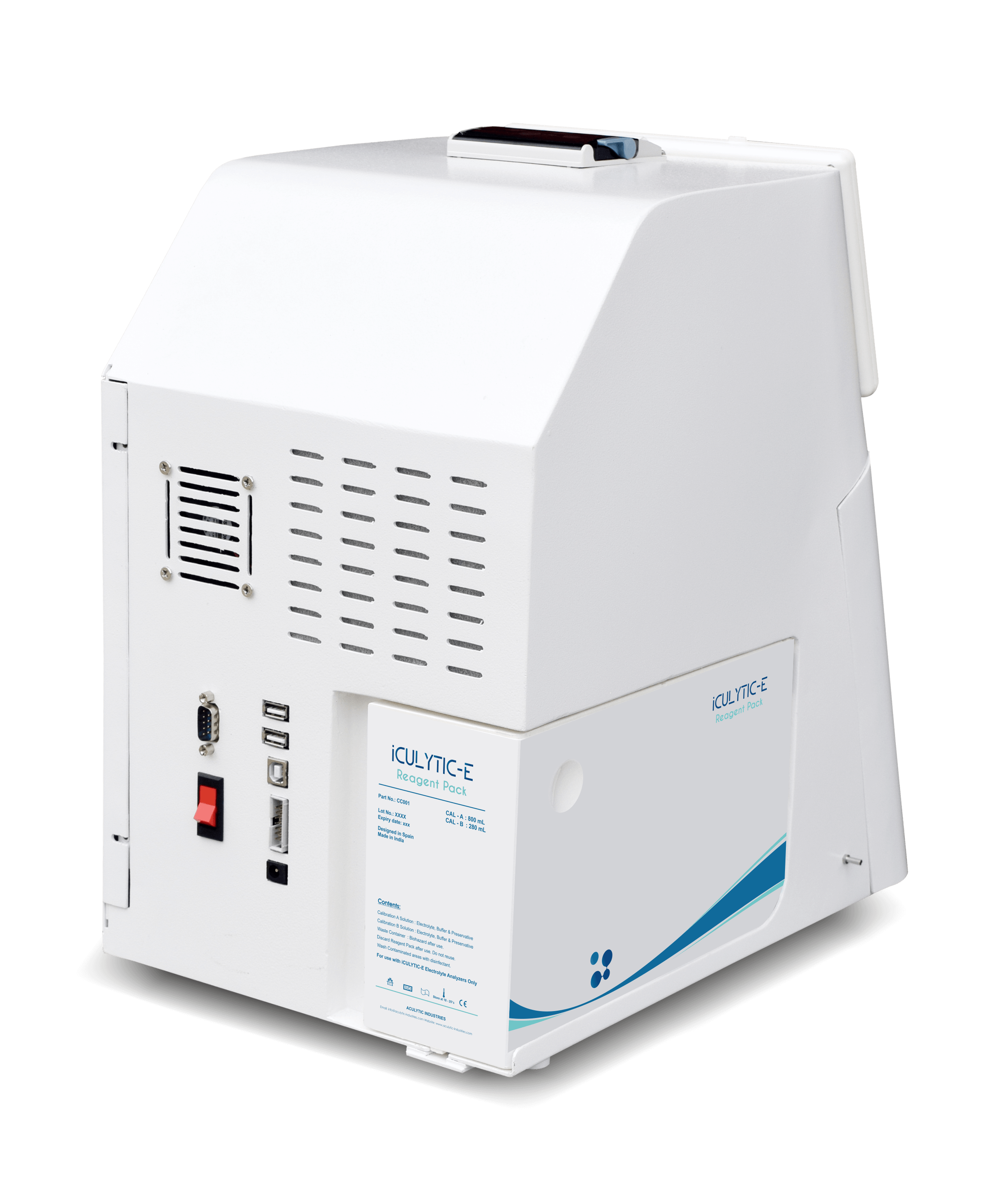

20180328 PIC 4 - ELECTROLYTE ANALYZERS - iCULYTIC-E - BACK
SPECIFICATIONS:

DISPLAY:
7” HC-LCD TOUCH SCREEN

LANGUAGE:
MULTI-LINGUAL

OPERATING SYSTEM:
ANDROID

OPERATION:
EASY TO OPERATE AND MAINTAIN

SAMPLE ASPIRATION:
CAPILLARY, SYRINGE, SAMPLE TUBE

SAMPLE TYPE:
WHOLE BLOOD, SERUM, PLASMA AND URINE

SAMPLE VOLUME:
140 µl

THROUGHPUT/HOUR:
55 SAMPLES

VOLTAGE:
220V - 50/60 HZ

DIMENSIONS, WEIGHT (INSTRUMENT):
375 X 250 X 450MM, 8.00KG

ADDITIONAL OPTIONS:

» BARCODE READER
» BATTERY BACKUP (UP TO 10 HOURS)
» WIFI



CONFIGURATIONS:
ITEM NUMBERS PARAMETERS
iCULYTIC-E-001 Na/K
iCULYTIC-E-002 Na/K/Cl
iCULYTIC-E-003 Na/K/iCa
iCULYTIC-E-004 Na/K/iCa/Cl
iCULYTIC-E-005 Na/K/iCa/Li
iCULYTIC-E-006 Na/K/iCa/pH
iCULYTIC-E-007 Na/K/iCa/pH/Li
iCULYTIC-E-008 Na/K/iCa/pH/Cl
iCULYTIC-E-009 Na/K/iCa/Li/Cl
iCULYTIC-E-010
 Na/K/iCa/Li/pH/Cl
