iCULYTIC-BGE

FEATURES:

  • USER INTERFACE: EASY TO USE
  • FULL INTEGRATION: WITH LIS (LABORATORY INFORMATION SYSTEM) AND HIS (BUILDING MANAGEMENT SYSTEM) SYSTEMS
  • REAGENT PACK: UNIVERSAL FOR ALL PARAMETERS (Na, iCa, K, pH, Li, Cl)
  • AUTO-CALIBRATION: ON INSTALLATION OF NEW REAGENT PACK
  • RESULTS: STORES OVER 175,000 (COMPARABLE, REPEATABLE, ACCURATE)
  • DATA: STORED BY PATIENT, TEST DATE AND PARAMETERS
  • SAMPLE READING TIME: 65 SECONDS
  • MEASUREMENT: ISE (ION SELECTIVE ELECTRODE)
  • COST PER TEST: LOW

» Ct» HCO3

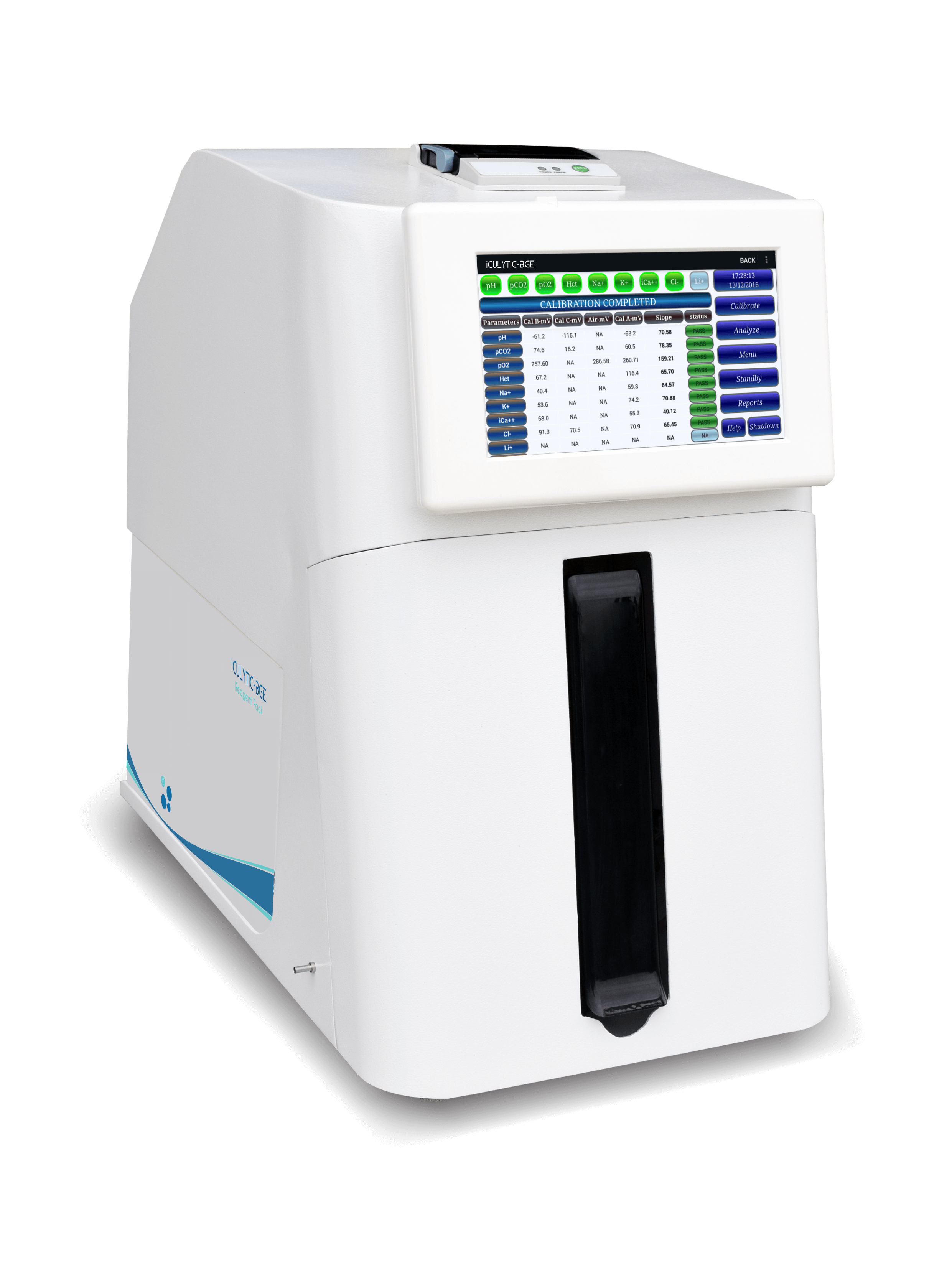

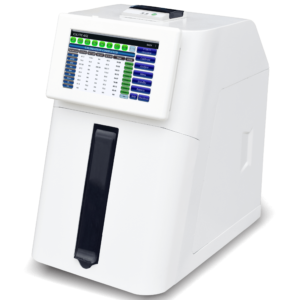

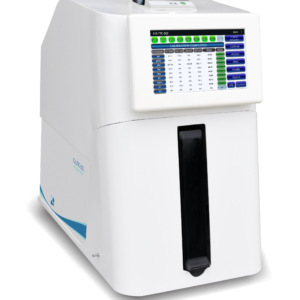

20180328 PIC 10 - ELECTROLYTE - BLOOD GAS ANALYZERS - iCULYTIC-BGE - SIDE (ON)

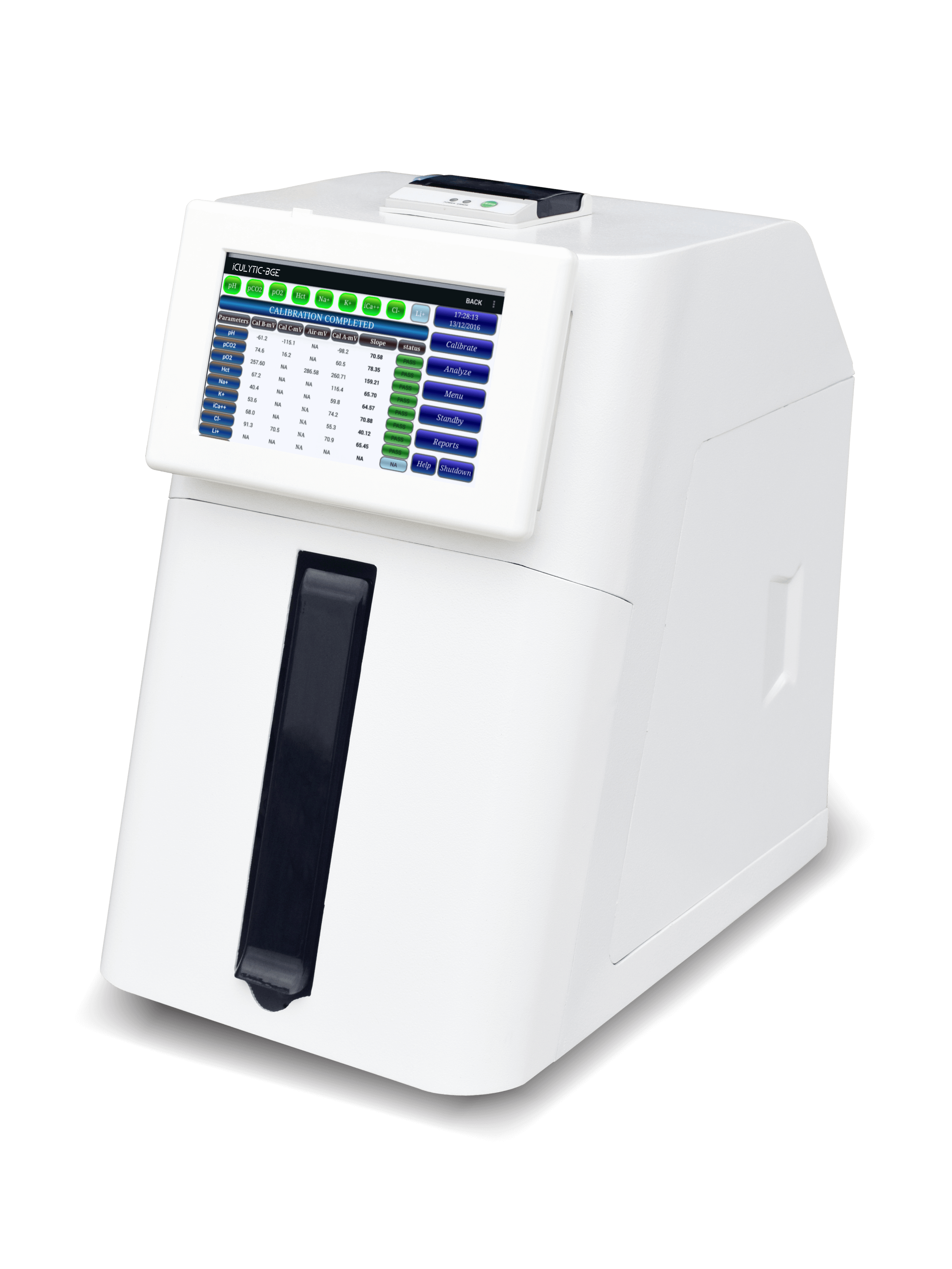

20180328 PIC 7 - ELECTROLYTE - BLOOD GAS ANALYZERS - iCULYTIC-BGE - SIDE (ON)

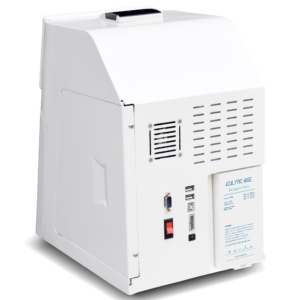

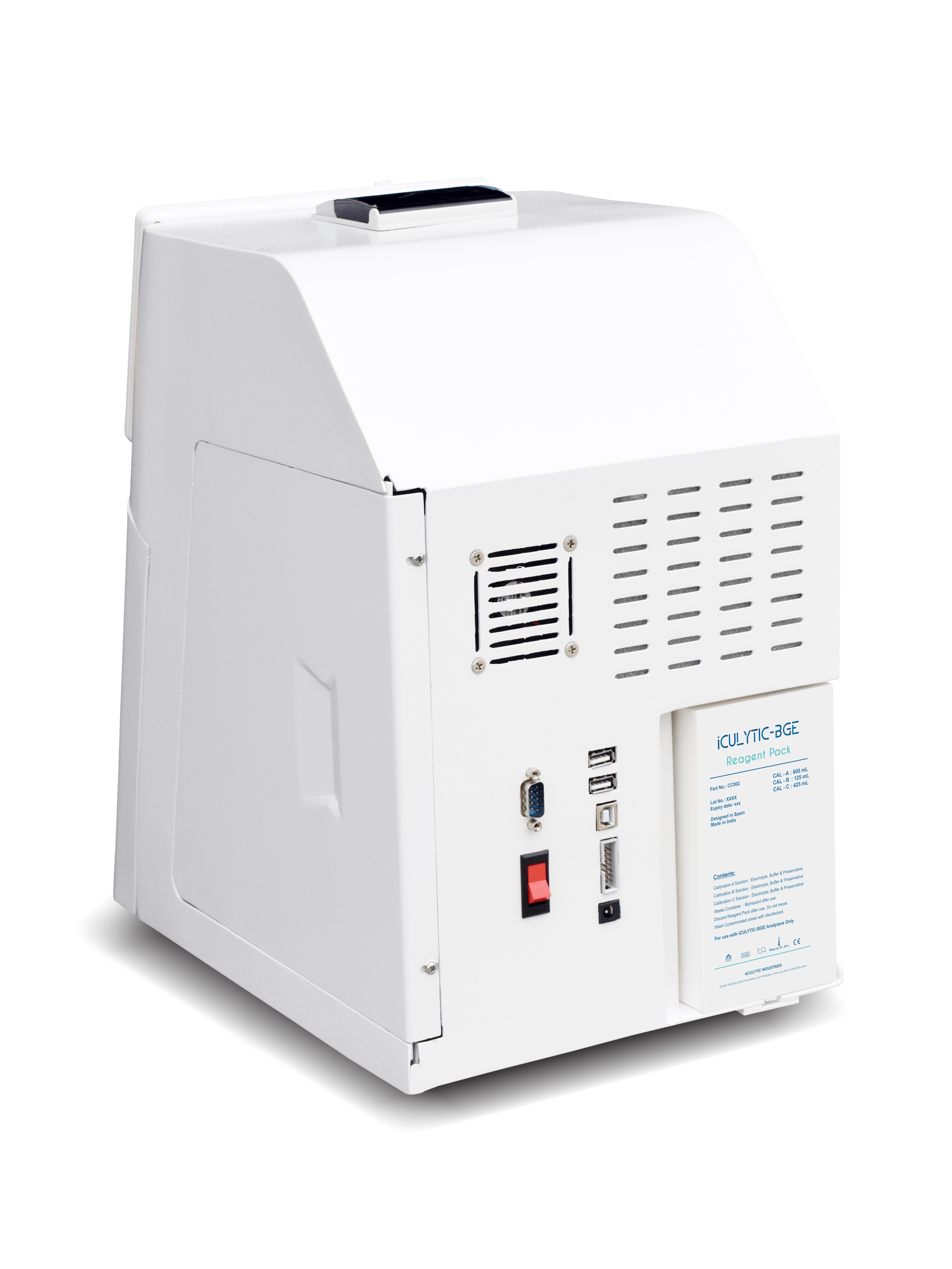

20180328 PIC 9 - ELECTROLYTE - BLOOD GAS ANALYZERS - iCULYTIC-BGE - BACK
SPECIFICATIONS:

DISPLAY:
7” HC-LCD TOUCH SCREEN

LANGUAGE:
MULTI-LINGUAL

OPERATING SYSTEM:
ANDROID

OPERATION:
EASY TO OPERATE AND MAINTAIN

SAMPLE ASPIRATION:
CAPILLARY, SYRINGE, SAMPLE TUBE

SAMPLE TYPE:
ARTERIAL BLOOD

SAMPLE VOLUME:
140 µl

THROUGHPUT/HOUR:
55 SAMPLES

VOLTAGE:
220V - 50/60 HZ

DIMENSIONS, WEIGHT (INSTRUMENT):
375 X 250 X 450MM, 8.00KG

ADDITIONAL OPTIONS:

» BARCODE READER
» BATTERY BACKUP (UP TO 10 HOURS)
» WIFI

CONFIGURATIONS:
ELECTROLITES BLOOD GAS
Na Hct
K pCO2
Ci pO2
Li pH
pH
iCA
PARAMETERS
BE-B TCO2
SBC BE-ECF
AG Hb
BE AG (K)
Ct HCO3
